RCbeam - Class Variables
All the methods of StrucPy.RCbeam is of non-returning type. All the results are accessable using class variables after perforimg the specific operation.
Reinforement Detail
Reinforcement detail can be accessed through `rebar_detail` variable, only after performing design or design optimization using dsgbeam and beam_optimization methods repectively. It gives the complete detail of reinforcement bars at critical sections of RC beam such as top reinforcement combination at left support, top reinforcement combination at right support, bottom reinforcement combination, continous bars, and development lengths. The result is presented in the form of dataframe, easy to understand and use.
Type: Dataframe
Stirrups Detail
Stirrups detail can be accessed through `shear_detail` variable, only after performing design or design optimization using dsgbeam and beam_optimization methods repectively. It gives the complete detail of stirrup bars along the length of the beam. It not only provides the diameter and leg of bar but also eaxt number of bars, distance and cutoff lengths including hooks.
Type: Dataframe
Design Check Status
Design check status can be accessed through `beam_status` variable. It gives the detail wheather RC beam passed or failed in certain checks such as maximum rebar area limit, depth limit, deflection limit, etc. The result is presented in the form of dataframe, easy to understand and use.
Type: Dataframe
3D Beam Detailing
3D RC beam detailing can be accessed through `detailing3D` variable, only after performing detailing using plotting method.
Type: Plotly.Figure

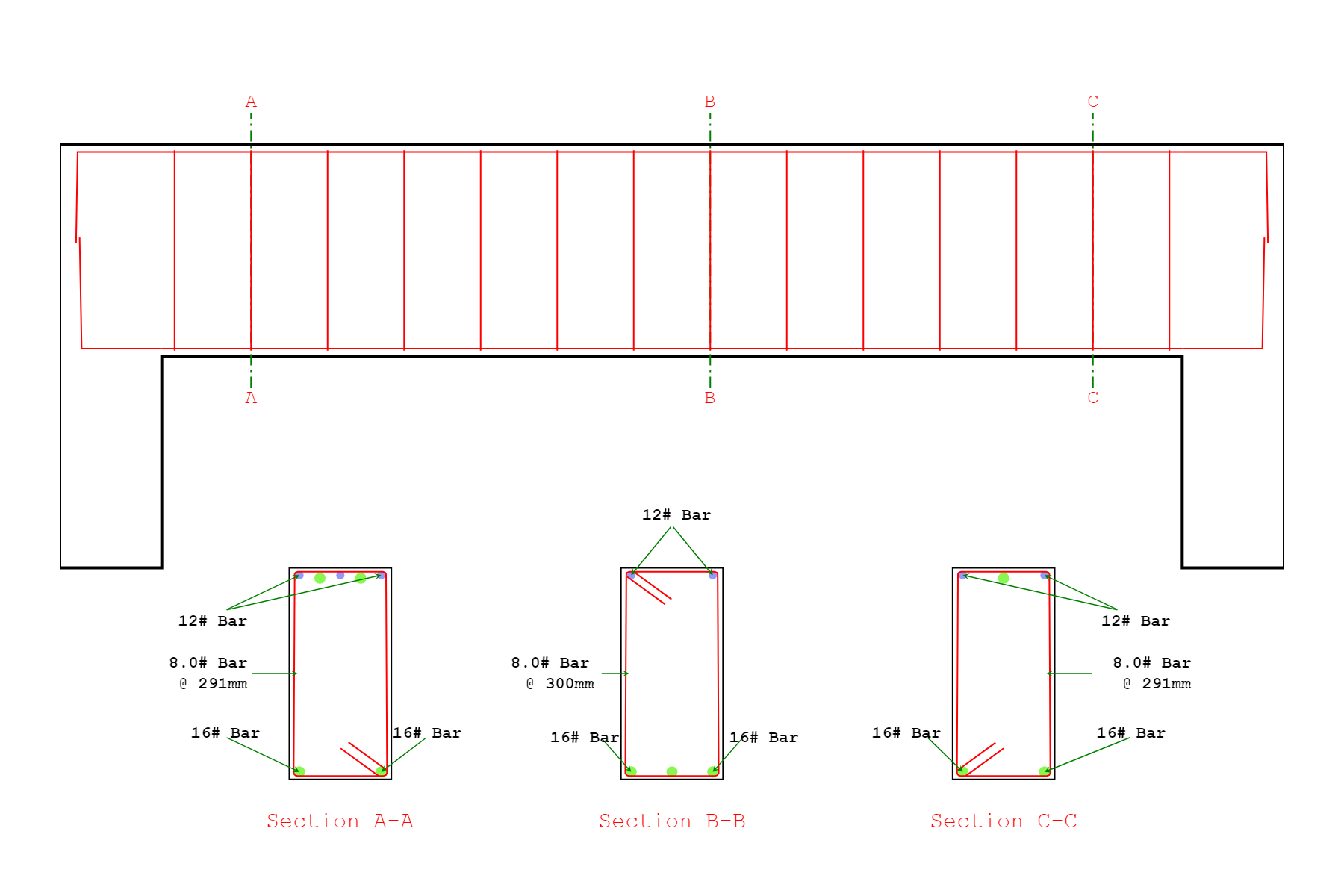

2D Beam Detailing
2D RC beam detailing can be accessed through `detailing2D` variable, only after performing detailing using plotting method.
Type: Plotly.Figure
Optimization Results
Optimization results can be accessed through `optimization_results` variable, only after performing design optimization using beam_optimization method. It gives the complete detail of the pareto front obtained during optimization.
Type: Dataframe
Reinforement Detail of Optimization Results
Reinforcement detail for all pareto front can be accessed through `rd_list` variable, only after performing design optimization using beam_optimization method. It gives the complete list of reinforcement bars detail corresponding to each pareto front front optimization result.
Type: List
Stirrups Detail of Optimization Results
Stirrups detail for all pareto front can be accessed through `sd_list` variable, only after performing design optimization using beam_optimization method. It gives the complete list of stirrup bars detail corresponding to each pareto front front optimization result.
Type: List
